Description
Rain Gutter Roll Forming Machine is a profiling machine of metal rain gutter sheet. It is a special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, through continuous rolling and cold-forming, the sheets are automatically cut to the size and specification required.
Main Parts of the Rain Gutter Roll Forming Machine
Decoiler, guiding system, roll forming system, cutting system, electric controlling system, hydraulic system, supporter
Package and Transportation
The main machine is barely loaded in the container and the spare parts are put in the wooden box.
Parameters
NO
|
Item
|
Para
|
Remark
|
1
|
Suitable Material
|
Type
|
Color Steel Sheet
|
|
Thickness (mm)
|
0.3 to 0.7
|
|
Yield Strength (Mpa)
|
230 to 300
|
|
(mm)
|
≤1250
|
|
Capacity of Decoiler
|
5T/8T/10T
|
According to Customer
|
2
|
Material of Rollers
|
No.45 Hard Chromeplate
|
|
3
|
Line Speed (m/min)
|
20
|
|
4
|
Roller Shaft Supporting Structure
|
guiding column
|
|
5
|
Electric Control System
|
PLC
|
Brand: Mitsubishi or Siemens
|
6
|
Operation Desk
|
Touch Screen + Button
|
|
Components
No
|
Name
|
Quantity
|
Remarks
|
1
|
Decoiler
|
1set
|
Up to Customer
|
2
|
Main Machine
|
Pre-cutting Device
|
1set
|
Up to Customer
|
Feeding Device
|
1set
|
|
Filming Device
|
1set
|
Up to Customer
|
Roll Forming System
|
1set
|
|
Movable Safety Guard
|
1set
|
Up to Customer
|
Post Cutting Device
|
1set
|
Without Waste
|
Hydraulic System
|
1set
|
|
3
|
Electric Control System
|
1set
|
|
4
|

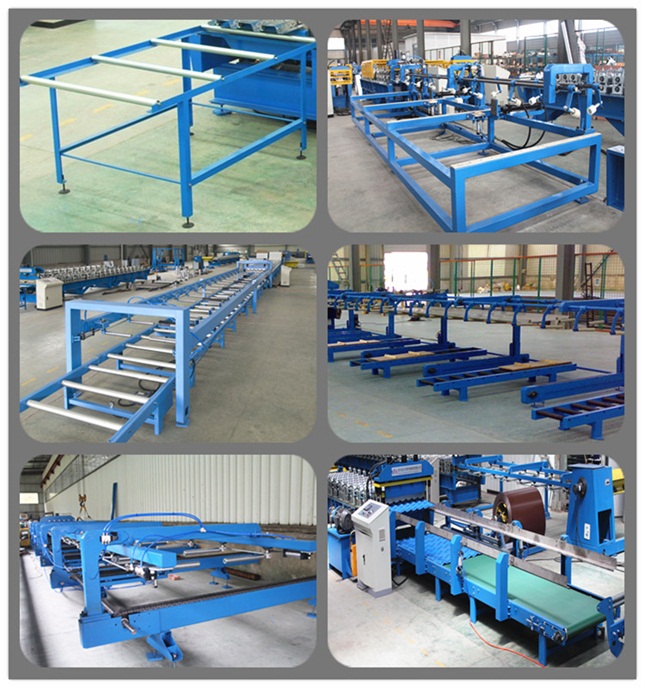

Supporter/Automatic Stacker
|
1set
|
Up to Customer
|
