Description
Light Steel frame forming machine is a cold rolling machine of Steel Frame which can realize the continuous automatic production. The steel frame roll forming line includes hydraulic expansion decoiler, leveling equipment, roll forming system, punching equipment, cutting equipment, hydraulic station, electric controlling system and supporter for purlin. The steel frame roll forming line adopts PLC control, AC frequency and speed adjusting technology to realize continuous production automatically. The cold rolling machine of Steel Frame is energy-saving and high-effective to produce equipment for steel structure.
Main Parts of the Light Steel frame forming machine
Decoiler, guiding system, leveling system, punching system, roll forming system, post cutting system, steel frame software, electric controlling system, hydraulic system, supporter
Package and Transportation

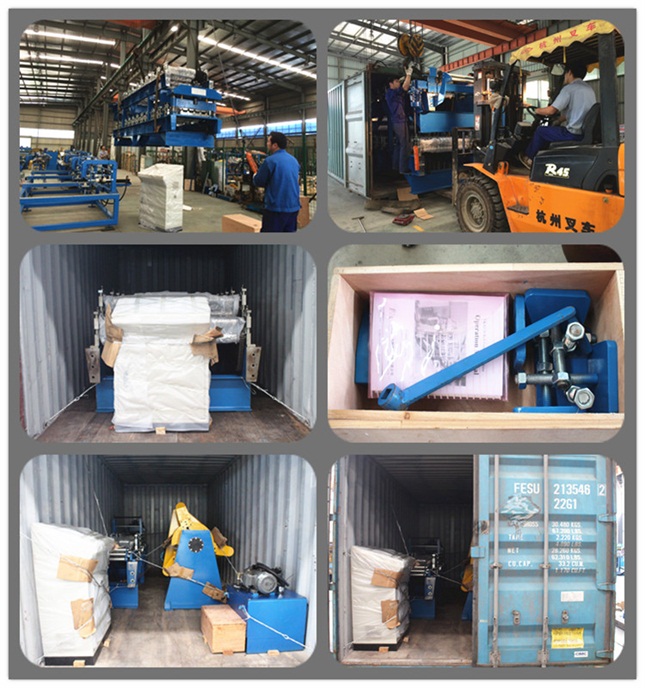

The main machine is barely loaded in the container and the spare parts are put in the wooden box.
Parameters
|
NO
|
Item
|
Para
|
Remark
|
|
1
|
Suitable Material
|
Type
|
Galvanization Steel Sheet
|
|
|
Thickness (mm)
|
1.15
|
|
|
Yield Strength (Mpa)
|
230 to 300
|
|
|
(mm)
|
182mm
|
|
|
Capacity of Decoiler
|
3T
|
According to Customer
|
|
2
|
Material of rollers
|
Bearing Steel with Quench Treatment
|
|
|
3
|
Forming Speed (m/min)
|
30
|
|
|
4
|
Roller Shaft Supporting Structure
|
Guide Column
|
|
|
5
|
Electric Control System
|
PLC
|
Brand: Mitsubishi or Siemens
|
|
6
|
Operation Desk
|
Touch Screen + Button
|
|
Components
|
No
|
Name
|
Quantity
|
Remarks
|
|
1
|
Decoiler
|
1set
|
Up to Customer
|
|
2
|
Main Machine
|
Feeding Device
|
1set
|
|
|
Leveling System
|
1set
|
|
|
Punching System
|
1set
|
Up to Customer
|
|
Post cutting System
|
1set
|
|
|
Roll Forming System
|
1set
|
|
|
Hydraulic System
|
1set
|
|
|
3
|
Electric Control System(Including software for steel frame)
|
1set
|
|
|
4
|
Supporter/Automatic Stacker
|
1set
|
Up to Customer
|
