Description

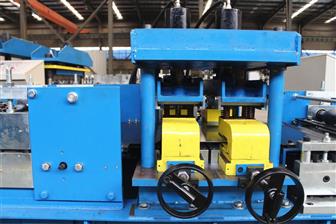

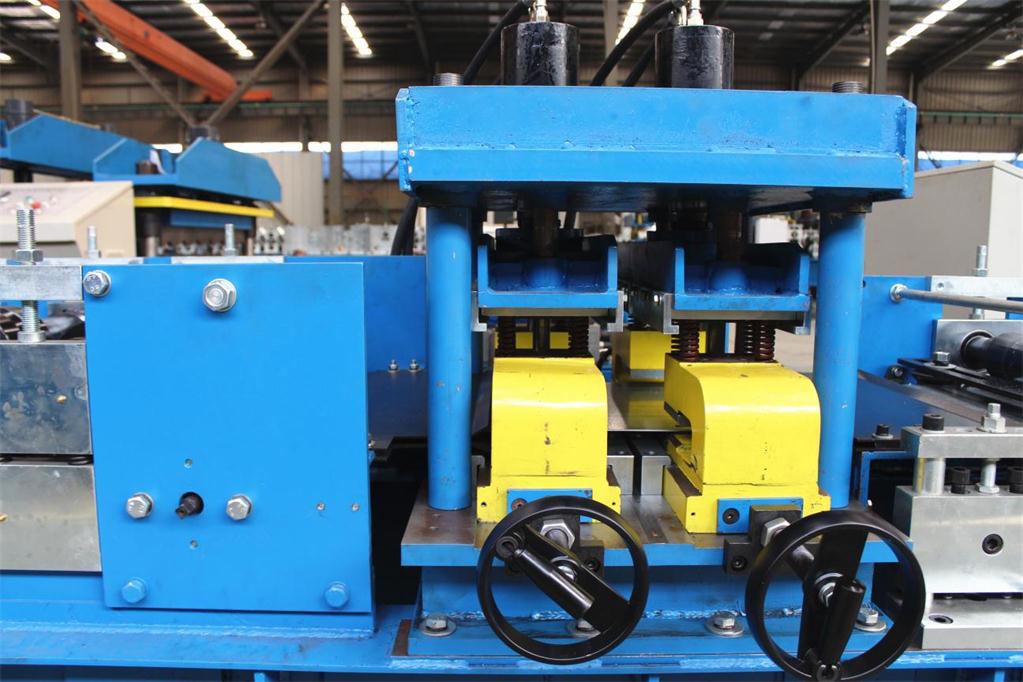

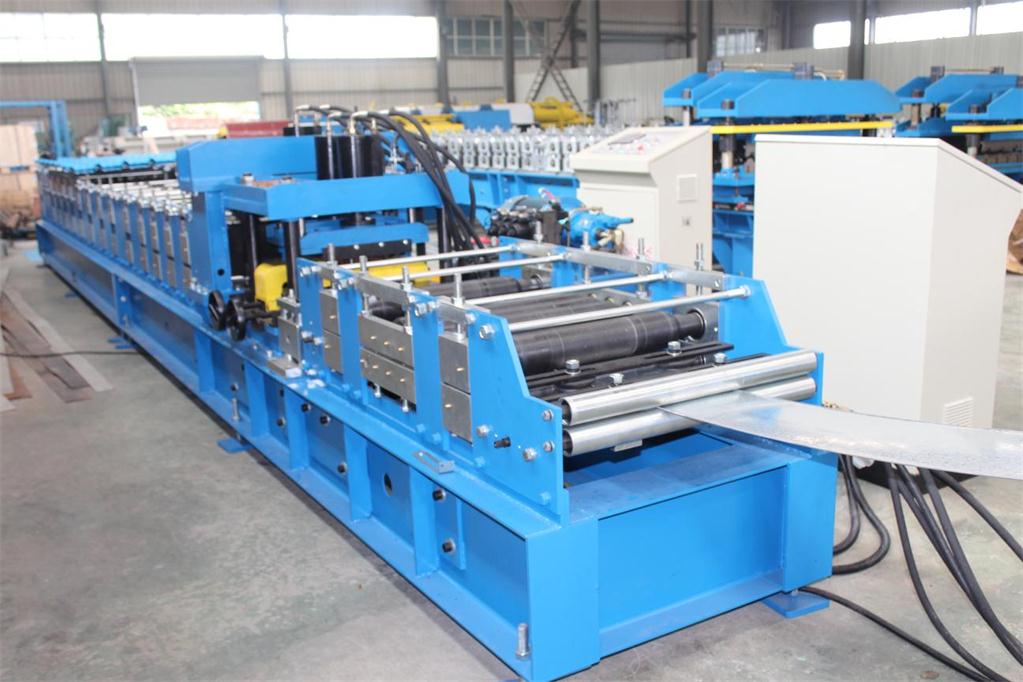

C/Z purlin roll former includes hydraulic expansion decoiler, leveling equipment, roll forming system, punching equipment, cutting equipment, hydraulic station, electric controlling system and supporter for purlin. The C/Z purlin roll former adopts PLC control, AC frequency and speed adjusting technology to realize continuous production automatically. The purlin roll forming line is energy-saving and high-effective to produce equipment for steel structure.
Process
Decoiling→sheet feeding→cold rolling→punching and cutting

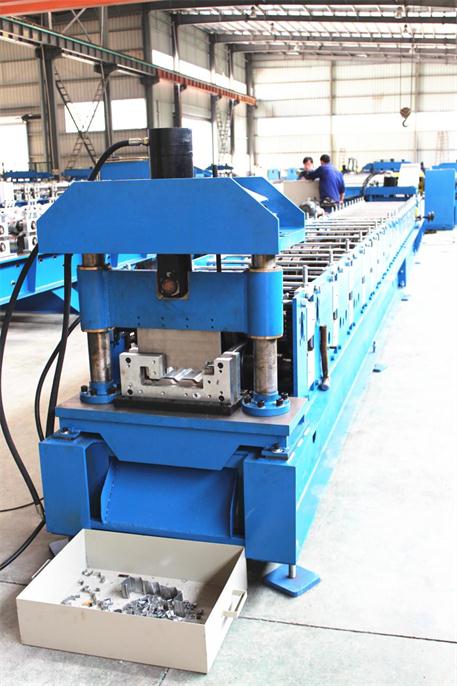

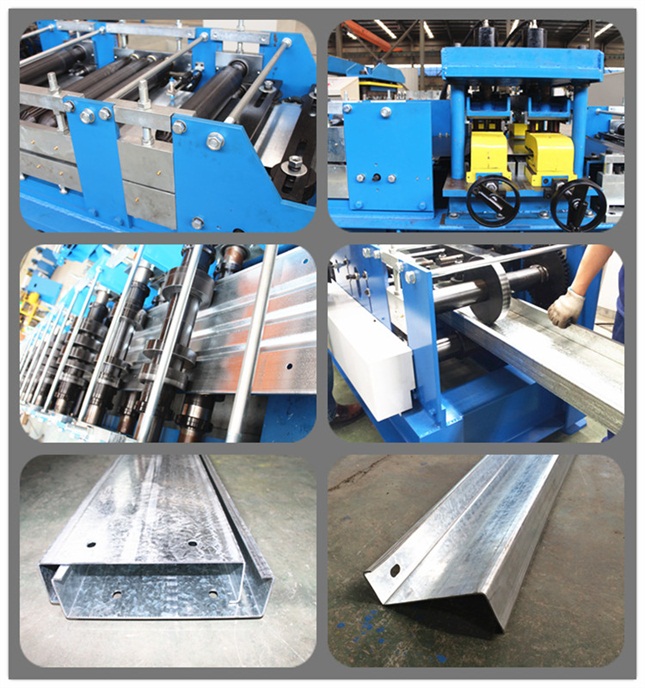

Main Parts of the C/Z Purlin Roll Forming Machine
Decoiler, guiding system, leveling system, pre-cutting system, roll forming system, electric controlling system, hydraulic system, supporter
Package and Transportation
The main machine is barely loaded in the container and the spare parts are put in the wooden box.
Parameters
No.
|
Item
|
Para
|
Remark
|
1
|
Suitable Material
|
Type
|
Galvanization Steel Sheet
|
|
Thickness (mm)
|
1.6 to 3.0
|
|
Yield Strength (Mpa)
|
230 to 300
|
|
(mm)
|
≤1250
|
|
Capacity of Decoiler
|
5T/8T/10T
|
According to Customer
|
2
|
Material of rollers
|
Bearing Steel with Quench Treatment
|
|
3
|
Line Speed (m/min)
|
10
|
Excluding Punching and Cutting
|
4
|
Roller Shaft Supporting Structure
|
Steel Plate/Guide Column
|
|
5
|
Electric Control System
|
PLC
|
Brand: Mitsubishi or Siemens
|
6
|
Operation Desk
|
Touch Screen + Button
|
|
Components
No
|
Name
|
Quantity
|
Remarks
|
1
|
Decoiler
|
1set
|
Up to Customer
|
2
|
Main Machine
|
Feeding Device
|
1set
|
|
Leveling System
|
1set
|
|
Punching System
|
1set
|
Up to Customer
|
Pre-cutting System
|
1set
|
|
Roll Forming System
|
1set
|
|
Hydraulic System
|
1set
|
|
3
|
Electric Control System
|
1set
|
|
4
|
Supporter/Automatic Stacker
|
1set
|
Up to Customer
|
